Permeable Resin Bound Gravel A Sustainable Solution
Permeable resin-bound gravel offers a compelling alternative to traditional paving materials, prioritizing sustainability and enhancing urban landscapes. This versatile material, composed of a mixture of gravel and resin, allows water to permeate through the surface, mitigating runoff and promoting healthy drainage systems. The process, from initial material selection to final installation, contributes to the development of environmentally conscious spaces. Aesthetically pleasing, this paving option presents a range of designs and colors, adding visual appeal to residential and commercial areas alike.
This overview delves into the various facets of permeable resin-bound gravel, encompassing its composition, manufacturing, applications, benefits, installation, durability, cost considerations, environmental impact, and safety precautions. Comprehensive tables illustrate comparative analyses between this material and traditional paving options, providing a clear and concise summary of the advantages and disadvantages of each approach.
Introduction to Permeable Resin-Bound Gravel
Permeable resin-bound gravel (PRBG) is a modern paving material that combines the aesthetic appeal of gravel with the practicality of a bound surface. This engineered mix offers a durable and environmentally friendly alternative to traditional asphalt or concrete, particularly suited for areas needing water permeability. It’s gaining popularity for its versatility in various applications, from driveways and patios to pedestrian walkways and even car parks.
The key to PRBG’s effectiveness lies in its unique composition, which allows for water infiltration while maintaining a stable and attractive surface. The resin binder acts as a glue, holding the gravel together to create a robust yet permeable layer. Understanding the components and the manufacturing process is key to appreciating the advantages and potential applications of this material.
Key Components and Their Roles, Permeable resin-bound gravel
PRBG typically comprises gravel aggregates, a resin binder, and sometimes colorants or other additives. The gravel, often crushed stone or similar material, provides the bulk of the surface area and its aesthetic appeal. The resin binder, a polymer-based substance, plays a crucial role in holding the gravel together and creating the cohesive surface. This resin also contributes to the material’s strength and durability. Colorants can be added to match specific design preferences.
Manufacturing Process
The manufacturing process for PRBG involves several stages. First, the chosen gravel is carefully screened and sized. Next, the resin binder is mixed with other additives (if any) according to precise specifications. The gravel and resin mixture is then thoroughly combined, usually through specialized machinery. This mixture is spread onto the prepared surface and compacted. Finally, the surface is typically sealed or finished, ensuring a smooth and even texture. Variations in specific manufacturing methods exist depending on the manufacturer and desired final product.
Aesthetic Qualities

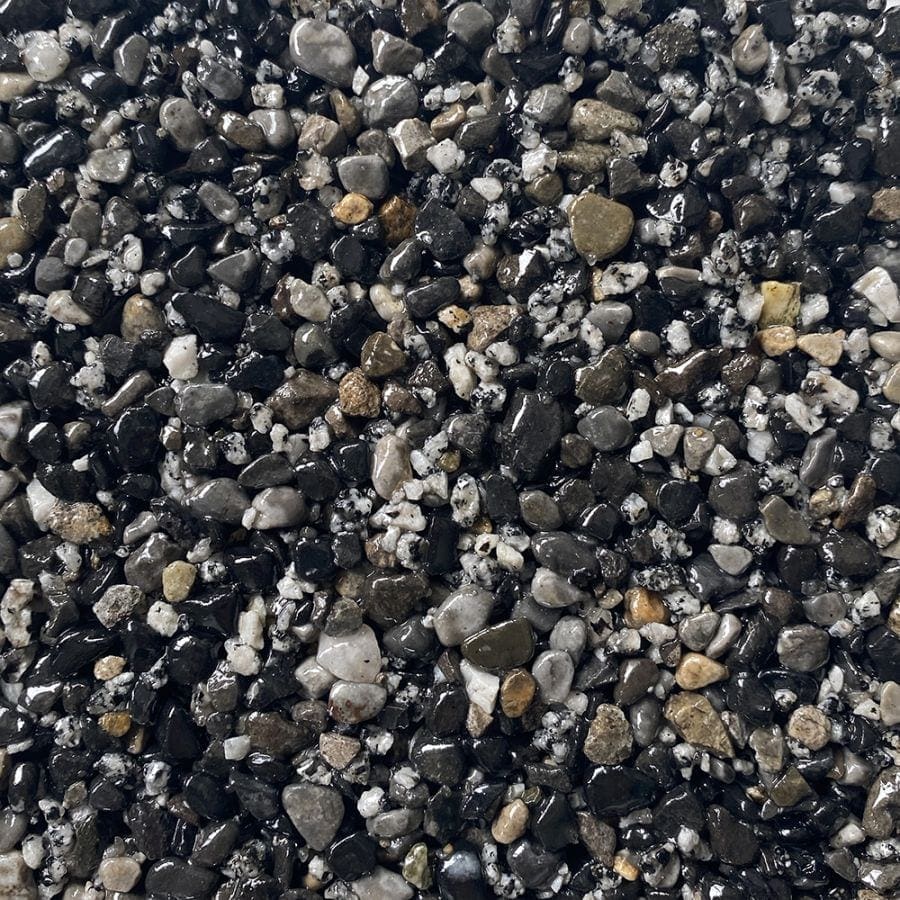

PRBG offers a wide range of aesthetic possibilities. The natural appearance of the gravel, in a variety of colors and textures, can create a visually appealing surface. The resin binder allows for a smooth and even finish, reducing the unevenness often associated with gravel surfaces. The ability to incorporate colorants provides further design flexibility, allowing for customized shades and tones to complement any environment.
Types of Permeable Resin-Bound Gravel
| Type | Description | Advantages | Disadvantages |
|---|---|---|---|
| Standard PRBG | A basic mix of gravel and resin binder, often with a neutral color. | Cost-effective, widely available, and relatively simple to install. | Limited color options may not suit all aesthetic preferences. |
| Colored PRBG | The same as standard PRBG but with added colorants to customize the aesthetic. | Increased aesthetic options, ability to match specific design requirements. | Potentially higher cost than standard PRBG; availability of specific colors might be limited. |
| High-Traffic PRBG | Specifically formulated for areas with high vehicular or pedestrian traffic, featuring a reinforced resin binder. | Enhanced durability and resistance to wear and tear, suitable for high-use areas. | Higher cost than standard PRBG; installation may be more complex. |
| Eco-Friendly PRBG | Utilizes environmentally friendly resins and aggregates. | Reduces environmental impact, promotes sustainable practices. | Potentially higher cost, availability of eco-friendly materials might be limited in certain regions. |
Applications and Uses
Source: co.uk
Permeable resin bound gravel (PRBG) offers a versatile alternative to traditional paving materials in landscaping and infrastructure projects. Its unique properties, including its permeability and durability, make it suitable for a wide range of applications, from residential driveways to commercial parking areas. This section explores the diverse applications of PRBG and highlights its advantages over conventional options.
PRBG’s ability to absorb rainwater and allow for natural drainage minimizes runoff, mitigating flooding risks and protecting water resources. Its durability and resistance to wear make it a practical and long-lasting solution for high-traffic areas. This combination of benefits positions PRBG as a sustainable and cost-effective choice for various landscaping and infrastructure projects.
Landscaping Applications
PRBG excels in enhancing aesthetic appeal and functionality in various landscaping settings. Its versatility allows for integration into gardens, walkways, and patios, offering a visually appealing and environmentally conscious solution. The natural appearance of the gravel, combined with the aesthetic flexibility of the resin binder, provides homeowners and landscapers with a wide array of design possibilities.
Suitability for Different Surfaces and Environments
The suitability of PRBG extends to diverse surface types and environmental conditions. Its ability to withstand varying weather conditions, including freezing and thawing cycles, makes it resilient in diverse climates. Its porous nature allows for better drainage, which is crucial in areas prone to heavy rainfall or high water tables.
Use in Parking Areas and Driveways
PRBG’s strength and durability make it a practical choice for parking areas and driveways. Its resistance to vehicle traffic and its permeability are key advantages in these high-traffic environments. Reduced runoff minimizes the risk of flooding, which is particularly important in urban settings. Furthermore, the aesthetic appeal of PRBG enhances the overall appearance of parking lots and driveways, making them more inviting.

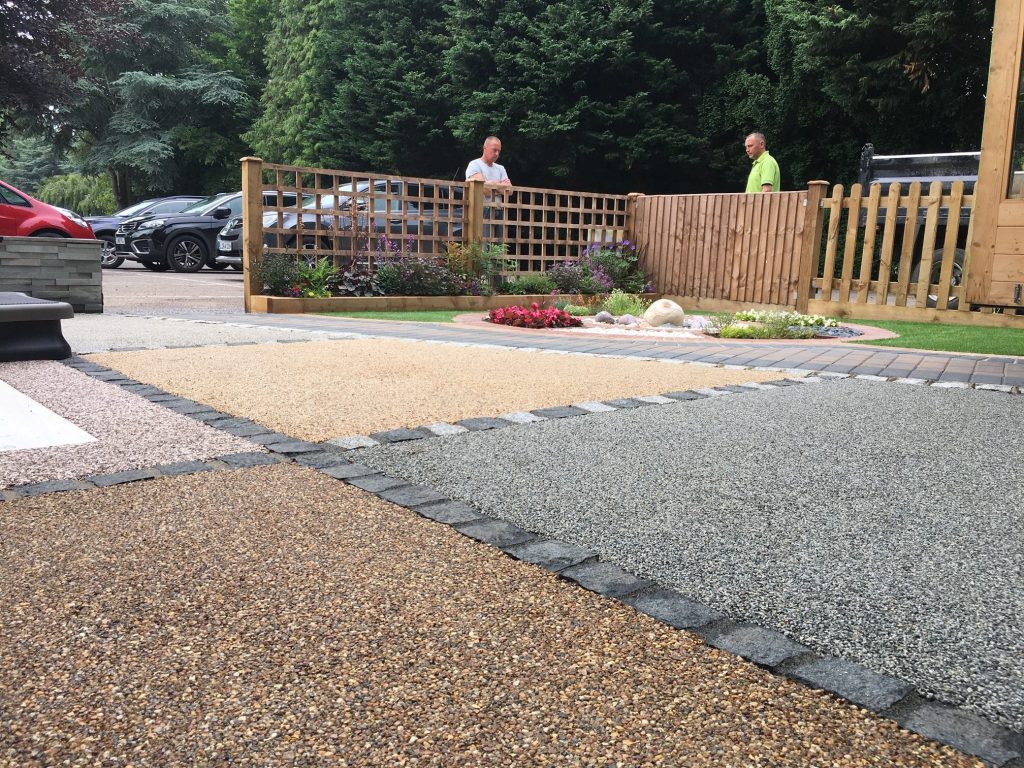

Examples of Installations in Different Settings
Numerous examples of PRBG installations exist across various settings. Residential properties frequently utilize PRBG for driveways and walkways, complementing the natural beauty of the surrounding landscape. Commercial spaces, such as retail centers and office complexes, leverage PRBG for parking lots, enhancing their aesthetics and functionality. Public spaces, including parks and recreational areas, also incorporate PRBG to provide attractive and sustainable walkways and pathways.
Comparison with Traditional Paving Materials
| Feature | Permeable Resin Bound Gravel | Asphalt | Concrete |
|---|---|---|---|
| Permeability | High | Low | Low |
| Durability | High | Moderate | High |
| Maintenance | Low | Moderate | Moderate |
| Aesthetics | High (customizable) | Moderate | Moderate |
| Environmental Impact | Positive (reduced runoff) | Moderate | Moderate |
This table provides a comparative overview of key characteristics, illustrating the advantages of PRBG in terms of permeability, durability, and environmental considerations.
Benefits and Advantages: Permeable Resin Bound Gravel
Permeable resin bound gravel offers a multitude of benefits over traditional paving materials, particularly in addressing environmental concerns and improving urban infrastructure. This material’s unique properties allow for enhanced water management and reduced stormwater runoff, contributing significantly to sustainable urban development.
The advantages extend beyond environmental considerations, encompassing improved pedestrian safety and aesthetics, while maintaining a durable and cost-effective solution for various applications.
Environmental Benefits
Permeable resin-bound gravel effectively manages rainwater infiltration, reducing the burden on municipal drainage systems and mitigating the risks associated with flooding. This characteristic contributes significantly to a healthier ecosystem by replenishing groundwater supplies and reducing the impact of urban development on natural water cycles. By promoting water absorption, permeable surfaces lessen the strain on local water resources, a crucial factor in regions experiencing water scarcity or drought.
Water Management and Drainage
The porous nature of permeable resin-bound gravel allows water to seep through the surface, unlike traditional impervious materials like asphalt and concrete. This facilitates natural drainage, reducing the risk of surface water accumulation and associated problems like flooding and erosion. The material’s ability to absorb water significantly enhances the overall water management capabilities of urban areas, improving resilience to extreme weather events. Moreover, the enhanced water absorption capacity can potentially contribute to groundwater recharge, supporting local ecosystems.
Impact on Stormwater Runoff
Permeable resin-bound gravel substantially reduces stormwater runoff compared to traditional paving materials. This reduction in runoff helps to lessen the strain on storm drains and wastewater treatment plants, contributing to improved water quality and minimizing the risk of flooding. By allowing water to percolate into the ground, this material effectively reduces the volume of water that needs to be managed by the drainage system. Consequently, it leads to reduced strain on the infrastructure, resulting in cost savings and increased resilience to weather-related challenges.
Contribution to Sustainable Urban Development
The use of permeable resin-bound gravel aligns perfectly with the principles of sustainable urban development. Minimizing stormwater runoff and promoting water infiltration helps create more environmentally friendly and resilient urban spaces. This material’s contribution to a sustainable future includes the enhancement of local ecosystems, reduction in greenhouse gas emissions related to water management, and a decreased reliance on conventional infrastructure solutions. This ultimately leads to long-term cost savings and improved quality of life for urban dwellers.
Comparison with Other Paving Materials
| Benefit | Permeable Resin Bound Gravel | Asphalt | Concrete |
|---|---|---|---|
| Water Infiltration | High | Low | Low |
| Stormwater Runoff Reduction | High | Low | Low |
| Groundwater Recharge | High | Low | Low |
| Durability | High | Moderate | High |
| Maintenance | Low | Moderate | Moderate |
This table provides a comparative overview of the key benefits of permeable resin bound gravel against asphalt and concrete. The differences highlight the substantial advantages of permeable gravel in terms of environmental impact and sustainable urban development.
Installation and Maintenance
Proper installation is crucial for the longevity and performance of permeable resin-bound gravel. A well-executed installation ensures optimal drainage, prevents issues like pooling or uneven surfaces, and maximizes the lifespan of the material. Careful attention to detail throughout the process is key to achieving a durable and aesthetically pleasing final product.
Substrate Preparation
Thorough preparation of the substrate is paramount for a successful installation. This involves removing any existing vegetation, debris, or loose soil. The area must be leveled to ensure proper drainage and to prevent uneven settling of the gravel. Compaction of the sub-base is essential for stability and to prevent future settling. The ideal sub-base should be compacted to a firm density. This ensures that the resin-bound gravel will adhere properly and maintain its stability over time.
- Clearing and leveling: The site is meticulously cleared of any obstacles, including roots, stones, and debris. A grader or similar equipment can be used to ensure a smooth and even surface. The area is then leveled using a spirit level and a straightedge, ensuring proper drainage.
- Compaction: Compacting the sub-base is critical for a stable foundation. This process should be carried out using appropriate equipment, like a plate compactor or a roller. This prevents future settling and ensures that the resin-bound gravel will maintain its position and appearance.
- Drainage considerations: Ensure proper drainage by incorporating a layer of gravel or geotextile fabric underneath the sub-base to facilitate water flow away from the area. Consider the slope of the land to ensure water flows away from the installation area.
Gravel Placement
The placement of the gravel is a key step in the installation process. A consistent layer thickness is critical for an even surface and uniform drainage. Carefully spreading the gravel evenly across the prepared substrate is essential for aesthetics and functionality.
- Even spreading: The gravel should be spread evenly and uniformly across the prepared area using a rake or similar tool. Care must be taken to avoid creating any clumps or uneven areas.
- Layer thickness: The resin-bound gravel should be applied in a consistent layer thickness, as specified by the product manufacturer. Maintaining a uniform depth ensures even performance and prevents issues like uneven settling.
- Seeding and watering: Once the gravel is in place, ensure proper coverage of the resin-binding material and follow the manufacturer’s instructions for spreading and distributing the resin. Water the area as per the instructions.
Drainage and Compaction
Ensuring proper drainage is crucial for the long-term performance of the permeable resin-bound gravel. Adequate compaction of the gravel layer is essential for stability and to prevent settling.
- Drainage considerations: Consider the existing drainage patterns in the area and ensure that the installation will not impede or disrupt natural water flow. Appropriate drainage solutions, such as French drains or similar systems, may be necessary to redirect water away from the area if necessary.
- Compaction techniques: Compaction is crucial for a stable surface. Use appropriate tools like hand tampers or mechanical compactors to ensure the gravel layer is properly compacted, ensuring stability and preventing uneven settling.
- Monitoring and adjustment: Regular monitoring during the compaction process is vital to ensure proper settling and a stable surface. Adjustments to the compaction techniques may be necessary based on the specific conditions of the site.

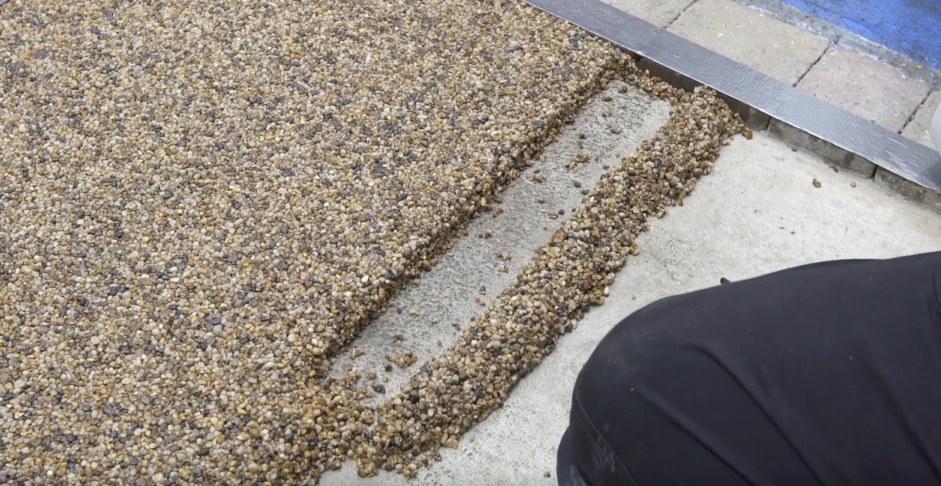

Surface Finishing
Achieving a smooth and level surface is important for the aesthetic appeal and durability of the resin-bound gravel.
- Leveling techniques: Using a straightedge and a spirit level, ensure the surface is smooth and level. Adjust the gravel as needed to achieve a uniform and level surface. Carefully assess and address any areas that appear uneven.
- Finishing touches: Once the surface is level, use a broom or rake to distribute any excess resin-binding material evenly. Allow the resin to cure completely according to the manufacturer’s instructions. A final sweep to remove any excess material will ensure a neat and professional finish.
Tools and Equipment
The following tools and equipment are essential for a successful installation:
- Shovels
- Rakes
- Level
- Straightedge
- Compactor (plate compactor or roller)
- Measuring tape
- Safety gear
Installation Techniques
| Technique | Materials | Steps | Considerations |
|---|---|---|---|
| Traditional Method | Resin-bound gravel, sub-base materials, and tools | Clear, level, compact, spread, compact gravel, finish | Suitable for most projects, requires skilled labor |
| Slipform Method | Resin-bound gravel, specialized equipment, sub-base materials | Pre-mixed resin is laid and compacted | Efficient for large projects, requires specialized equipment |
| Modular Method | Pre-fabricated resin-bound gravel modules, sub-base materials | Modules are laid out and interconnected | Faster installation, good for complex designs |
Durability and Longevity
Permeable resin-bound gravel (PRBG) offers a durable and long-lasting paving solution, with a lifespan significantly exceeding that of traditional asphalt or concrete. Its inherent strength and resistance to various environmental factors contribute to its longevity. Understanding the factors influencing its durability is key to maximizing its lifespan and ensuring its continued performance.
Factors Affecting Durability
Several factors play a crucial role in determining the long-term durability of PRBG. The quality of the resin binder, the aggregate size and type, and the installation techniques all significantly impact its resistance to wear and tear. Proper compaction during installation is essential to minimize voids and ensure a solid surface. Furthermore, the environmental conditions in which the PRBG is used, such as freeze-thaw cycles and exposure to UV radiation, will influence its lifespan.
Maintenance Requirements
Regular maintenance is crucial to preserving the quality and longevity of PRBG. This includes periodic cleaning to remove debris and contaminants, which can prevent the build-up of harmful materials that could compromise the resin binder. Regular inspections can detect any signs of damage or deterioration early on, enabling prompt repairs to maintain the surface’s integrity. Addressing any cracks or settling promptly will prevent further deterioration. A well-maintained PRBG surface will retain its aesthetic appeal and functional performance for many years.
Comparison with Other Paving Options
PRBG typically demonstrates superior durability compared to porous asphalt, which can crack and degrade more rapidly in harsh environments. Concrete, while robust, can be susceptible to cracking due to temperature fluctuations. PRBG’s resilience to these factors contributes to its longer lifespan and lower maintenance requirements compared to these alternatives. Furthermore, the permeable nature of PRBG allows for better water drainage, preventing water damage that can shorten the lifespan of other paving options.
Potential Issues and Solutions
| Issue | Description | Cause | Solution |
|---|---|---|---|
| Surface Degradation | Appearance of cracks, discoloration, or loss of resin binder cohesion | Exposure to harsh weather conditions, insufficient compaction during installation, or poor quality materials | Regular cleaning and inspection to detect and address issues early, and repair any cracks or areas of degradation promptly. Using high-quality resin and aggregates can mitigate these issues. |
| Aggregate Displacement | Movement or displacement of gravel aggregates | Inadequate compaction during installation or insufficient resin binder to hold the aggregate in place. | Ensure thorough compaction during installation. Use a higher resin content for greater aggregate binding strength. |
| Weed Growth | Unwanted weed growth in the surface layer | Poor weed control measures during installation or inadequate sealing. | Regular weeding and maintenance, use of weed barriers to prevent the growth of weeds. This can be combined with appropriate resin selection. |
| Surface Staining | Appearance of stains on the surface | Exposure to oil, chemicals, or other contaminants. | Regular cleaning with appropriate cleaning agents and immediate removal of spills or contaminants. |
Cost and Financial Considerations
Permeable resin bound gravel, while offering numerous environmental and practical benefits, does come with a cost. Understanding the associated expenses, comparing them to alternative paving options, and evaluating long-term savings is crucial for informed decision-making. This section delves into the financial aspects of this paving material.
Material Costs
The cost of permeable resin-bound gravel varies depending on several factors, including the type of resin used, the desired aesthetic, and the volume of material required. Resin types vary in cost, with some offering enhanced durability or aesthetic appeal, thus influencing the overall price. The quantity required is directly proportional to the project size and complexity, influencing the total material expense. Factors such as transportation costs also play a role in the final price.
Labor Costs
Installation labor costs depend on factors like the complexity of the project, the size of the team required, and the skill level of the installers. A larger project, for example, one that encompasses multiple intricate designs or intricate landscaping features, will typically demand more labor hours, thus escalating the associated costs. Skilled labor, particularly for complex installations, tends to command higher rates, impacting the overall cost of the project.
Comparison with Alternative Paving Materials
Comparing permeable resin-bound gravel to other paving alternatives reveals varying price points. Concrete and asphalt, while often more affordable upfront, incur higher long-term maintenance costs due to their susceptibility to cracking, potholes, and the need for frequent repairs. In contrast, permeable resin-bound gravel, with its inherent durability and low maintenance, presents a potentially more cost-effective solution over the long haul.
Long-Term Cost-Effectiveness
The long-term cost-effectiveness of permeable resin-bound gravel hinges on its reduced maintenance requirements. Frequent repairs and replacements are less common compared to traditional paving materials, leading to substantial savings over time. This material’s ability to manage stormwater effectively can also reduce the need for costly drainage infrastructure upgrades, contributing further to its long-term affordability.
Potential Savings
Reduced maintenance and the avoidance of costly drainage upgrades are significant potential savings associated with permeable resin-bound gravel. The material’s water management capabilities can mitigate the need for costly repairs and replacements over the life of the project, leading to substantial long-term financial advantages.
Estimated Costs
The following table provides a general cost estimation for permeable resin-bound gravel projects of varying sizes. Note that these are estimates, and actual costs may vary based on the specific project requirements.
| Project Size (sq. meters) | Materials (USD) | Labor (USD) | Total Cost (USD) |
|---|---|---|---|
| 100 | 1,500 – 2,500 | 500 – 1,000 | 2,000 – 3,500 |
| 250 | 4,500 – 7,500 | 1,000 – 2,000 | 5,500 – 9,500 |
| 500 | 9,000 – 15,000 | 2,000 – 4,000 | 11,000 – 19,000 |
Environmental Impact
Permeable resin bound gravel, while offering numerous advantages, also warrants a careful consideration of its environmental impact throughout its lifecycle. From the sourcing of raw materials to the disposal of potential waste, understanding the environmental footprint is crucial for responsible implementation.
Manufacturing processes and resource consumption play a significant role in evaluating the overall environmental impact. Comparing the environmental footprint of this material to traditional paving options like asphalt and concrete is essential to assess its true sustainability. Recyclability and reusability are further factors that influence the long-term environmental consequences.
Manufacturing Impact
The production of permeable resin-bound gravel involves the use of various materials, including aggregates, resin binders, and potentially additives. The environmental impact of this process hinges on the sourcing and processing of these materials. Sustainable sourcing of aggregates, such as recycled materials, significantly reduces the environmental burden. Careful consideration of the energy consumption during the manufacturing process, including transportation and refining, is also necessary. The potential for minimizing waste generation during production and the use of low-impact manufacturing techniques contribute to a more sustainable approach.
Resource Consumption
The resource consumption during the production of permeable resin-bound gravel varies based on the specific materials used and manufacturing processes employed. Factors like the energy intensity of the production process, the water consumption during the manufacturing of the resin binder, and the amount of raw materials required all contribute to the overall resource footprint. Efficient production processes that minimize energy and water use are crucial for reducing the environmental impact.
Environmental Footprint Comparison
Comparing the environmental footprint of permeable resin-bound gravel with other paving materials reveals nuanced differences. Asphalt, for example, often relies heavily on fossil fuels in its production, leading to significant greenhouse gas emissions. Concrete production is also resource-intensive, demanding substantial amounts of raw materials like limestone and cement, which can contribute to carbon emissions and environmental degradation. A comparative analysis of the lifecycle assessments of different paving materials highlights the potential environmental advantages of permeable resin-bound gravel.
Recyclability and Reusability
The recyclability and reusability of permeable resin-bound gravel are crucial aspects of its environmental profile. The material’s components, particularly the aggregates, can often be recycled and reused, reducing the need for extracting new raw materials. The potential for reclaiming and reprocessing resin binders and other additives also contributes to a circular economy model. The ease of dismantling and reusing the gravel in other applications further strengthens its environmental credentials.
Environmental Benefits Comparison
| Factor | Permeable Resin Bound Gravel | Asphalt | Concrete |
|---|---|---|---|
| Greenhouse Gas Emissions (Production) | Potentially lower due to reduced reliance on fossil fuels | Higher due to reliance on fossil fuels | Moderate to high due to cement production |
| Resource Consumption (Raw Materials) | Potentially lower if recycled materials are used | Moderate to high | High due to significant use of raw materials |
| Water Consumption (Production) | Potentially lower compared to concrete production | Moderate | High due to hydration processes |
| Recyclability and Reusability | High potential for recycling and reuse of components | Limited recyclability | Limited recyclability |
Safety Considerations
Permeable resin-bound gravel (PRBG) surfaces offer numerous benefits, but careful consideration of safety aspects is crucial for both installation and ongoing use. This section details potential hazards and mitigation strategies to ensure a safe environment.
Proper safety precautions during installation and maintenance, along with an understanding of the material’s slip resistance, are paramount for minimizing risks. Careful planning and execution are essential to prevent accidents and maintain a safe environment for workers and users.
Installation Safety Precautions
Planning and executing the installation of PRBG requires meticulous attention to safety. Clear communication, appropriate personal protective equipment (PPE), and adherence to established procedures minimize risks. A designated safety officer can oversee the project and ensure that all workers understand and follow safety guidelines.
- Site Preparation: Ensure the area is clear of obstructions, and all loose materials are removed before commencing installation. This prevents tripping hazards and ensures a stable base for the gravel.
- Equipment Safety: Using appropriate equipment, like properly maintained machinery, and adhering to manufacturer guidelines reduces the risk of accidents during installation. Ensuring adequate ventilation when using heavy equipment is critical to prevent respiratory issues.
- Personnel Safety: Providing appropriate PPE, including safety glasses, gloves, and sturdy footwear, safeguards workers from potential hazards like dust inhalation, sharp edges, and slips. A thorough site-specific safety induction for all workers is essential.
- Traffic Management: During installation, implement temporary traffic control measures to regulate pedestrian and vehicular traffic to avoid accidents. This is especially critical during the stages when the surface is not fully prepared.
Slip Resistance and Surface Characteristics
The slip resistance of PRBG is influenced by factors such as aggregate type, resin binder quality, and surface texture. Testing procedures are employed to evaluate slip resistance and ensure compliance with relevant safety standards. Variations in the surface texture of PRBG can influence its slip resistance, and regular monitoring and maintenance can ensure appropriate slip resistance.
“The slip resistance of PRBG is generally good, but it’s crucial to understand the specific conditions affecting its friction characteristics.”
PRBG, due to its aggregate content and resin binder, exhibits a reasonably high coefficient of friction compared to loose gravel. However, this coefficient can be influenced by factors like moisture content and the presence of debris on the surface. Careful selection of materials and maintenance practices can significantly impact the material’s slip resistance.
Safety Guidelines
The following table provides a concise overview of safety guidelines for PRBG projects.
| Guideline | Description | Reason | Implementation |
|---|---|---|---|
| Site Preparation | Clear the area of obstructions and remove loose materials. | Prevents tripping hazards and ensures a stable base. | Thorough site assessment and removal of debris before installation. |
| PPE Usage | Provide and enforce the use of appropriate personal protective equipment. | Protects workers from dust, sharp objects, and slips. | Safety glasses, gloves, and sturdy footwear must be worn. |
| Traffic Control | Implement temporary traffic control measures during installation. | Prevents accidents and ensures worker safety. | Installation crews must be visible, and traffic signs must be used to indicate hazards. |
| Material Handling | Use proper handling techniques for aggregates and resin. | Prevents spills and potential injuries. | Employ appropriate lifting equipment and procedures. |
Last Recap
In conclusion, permeable resin-bound gravel emerges as a promising sustainable solution for various landscaping and paving applications. Its ability to manage water effectively, coupled with its aesthetically pleasing qualities, makes it an attractive choice for both residential and commercial projects. By understanding its characteristics, benefits, and installation procedures, stakeholders can confidently incorporate this innovative material into their future projects, contributing to environmentally friendly and aesthetically pleasing spaces.
